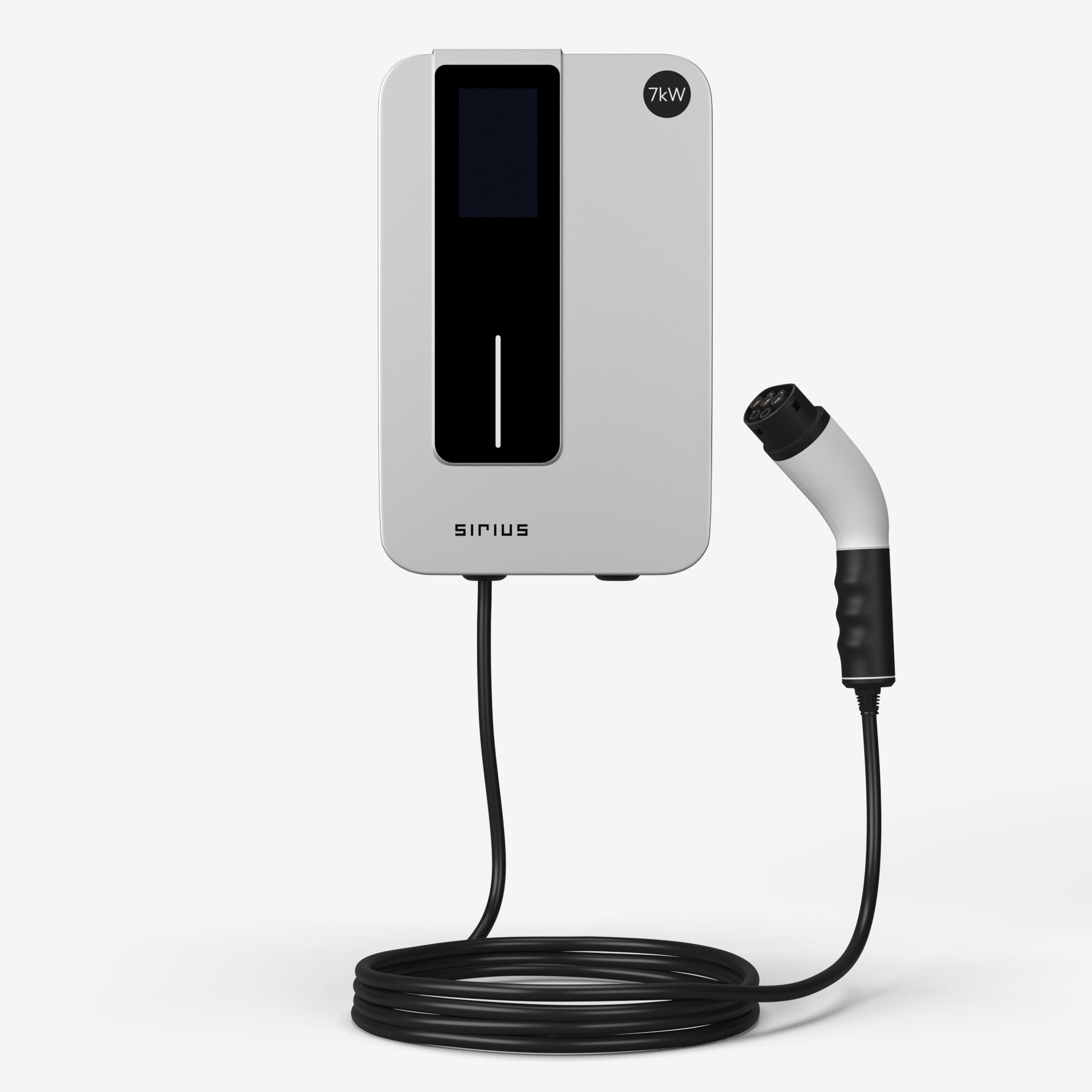

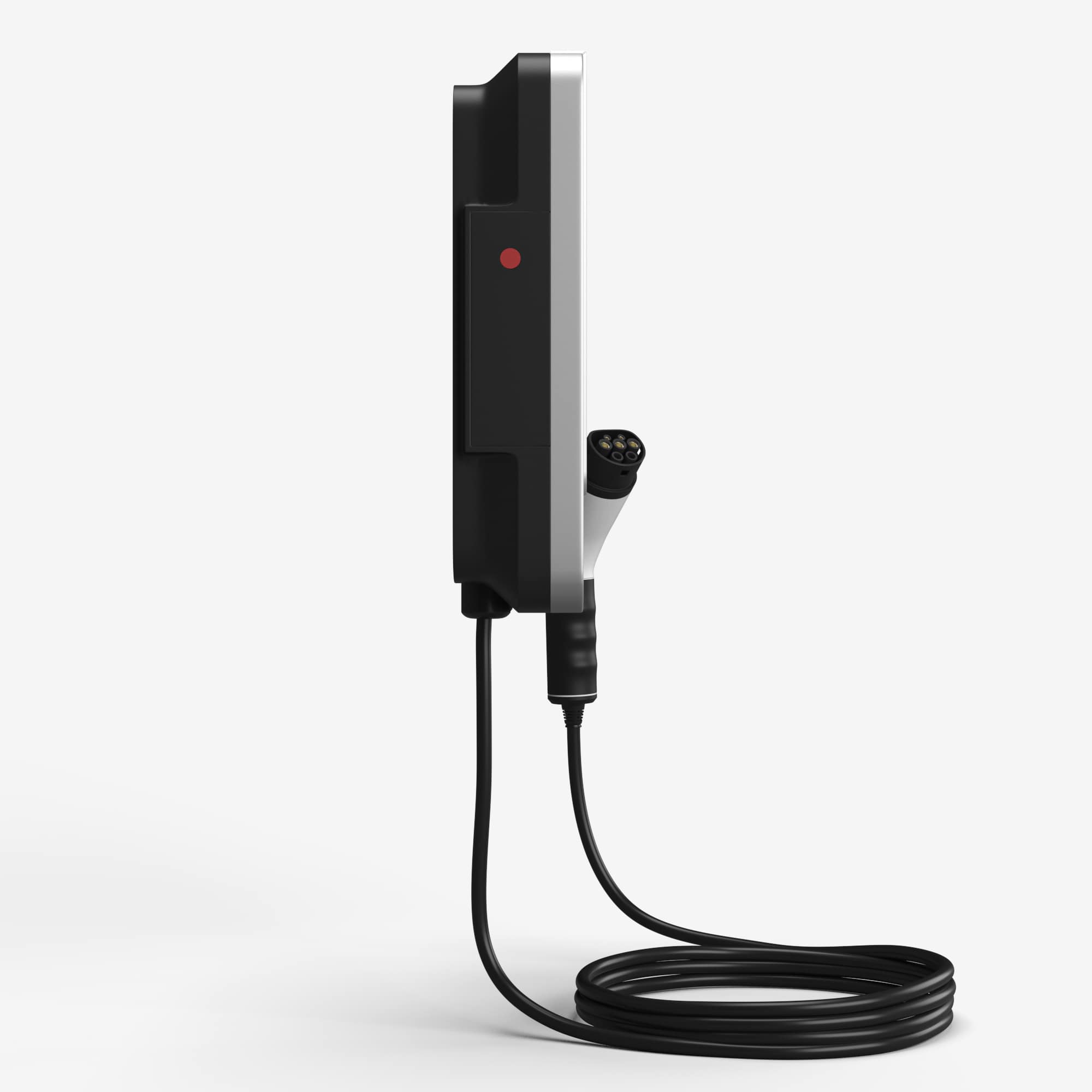

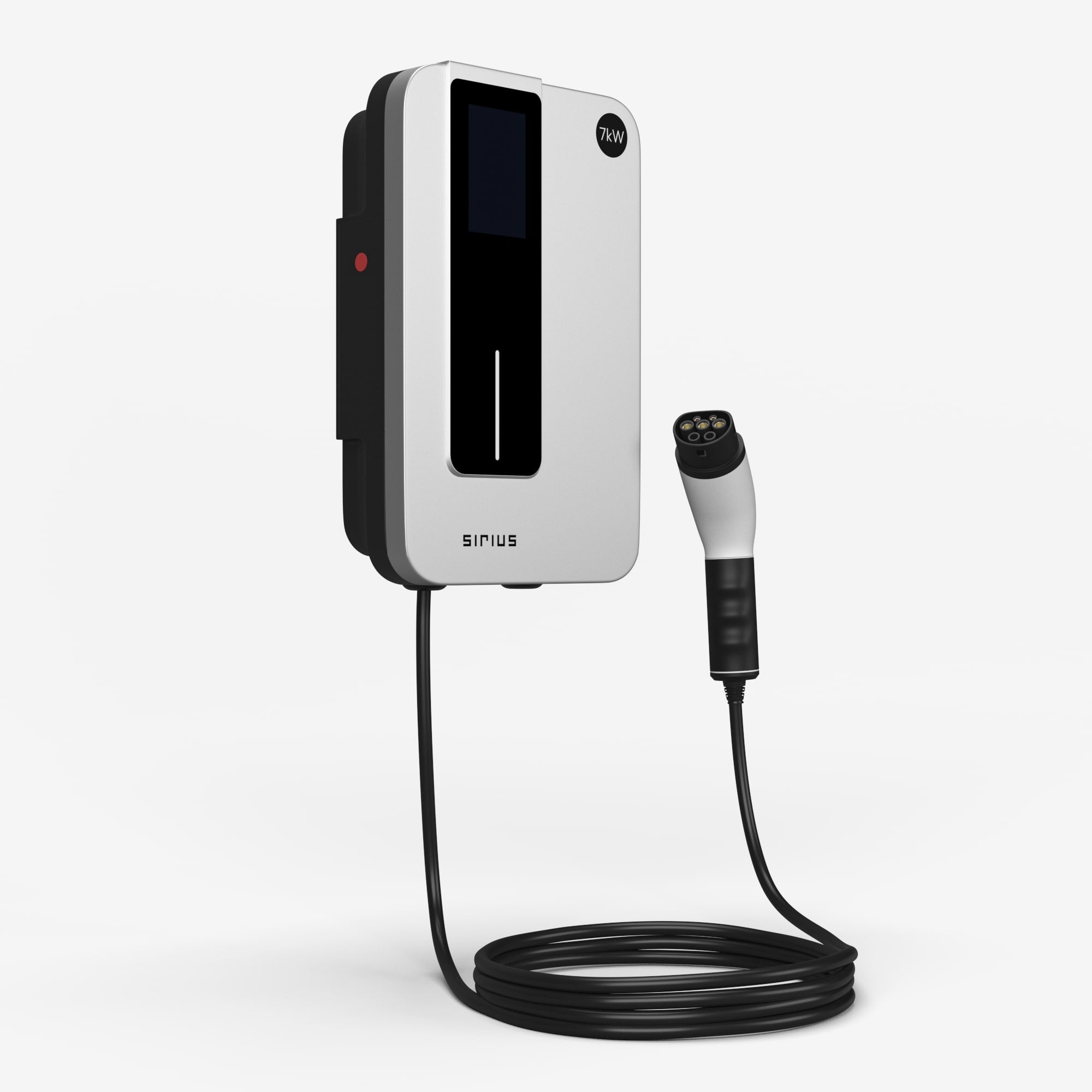

7 kW Wall Charger is a sleek and reliable solution for homes, apartments, and workplaces. Compact, weather-resistant, and simple to use, it delivers consistent performance for daily charging with the same premium design language as the 22 kW model.

Features

Maximum Power Output
Up to 7 kW (32 A, single-phase) for efficient overnight and daytime charging.

Type 2 Connection (IEC 62196-2)
Universally compatible with most EVs — Tesla, BYD, Hyundai, Kia, Polestar, and more.

Tethered Cable
Comes with a 5 m or 8 m tethered cable option to suit different parking positions.

Weather-Ready
IP65 rated housing with IK10 impact protection, engineered for outdoor or indoor installation.

Smart Display
Clear LCD interface provides charging status, voltage, current, and system feedback.

Safety Built-In
Integrated protection against overcurrent, over/under-voltage, leakage, short circuits, and overheating.

Certified
Meets international standards (IEC 61851, IEC 62196, EN 60335). Backed by a 5-year warranty.

Access Control
RFID cards included for secure shared use.

Technical Specs

Input
230 V AC ±10% (single-phase)

Maximum Output
7 kW, 32 A

Connector
Type 2 (IEC 62196-2)kv

Cable Length
5m tethered

Operating Temperature
–30 °C to +50 °C

Ingress / Impact Rating
IP65 / IK10

Dimensions
390 × 250 × 90 mm

Weight
5.0 kg

Includes

• 7 kW Wall Charger (with tethered cable)
• Mounting bracket and hardware
• 2 × RFID access cards

• Cable seals and wiring template

Installation

Installation is not included. Must be installed by a licensed electrician.
